√ Photoelectric Positioning
√ Servo Correction
√ Automatic Feeding
|
|
Model |
BFM900S |
BFM1000S |
|
1 |

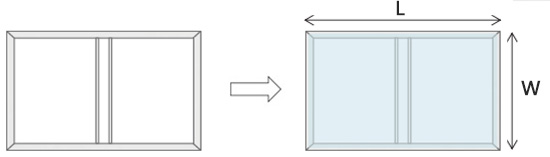

Case size(W×L) |
Min.: 90×180mm Max.: 450×950mm |
Min.: 140×190mm Max.: 600×1050mm |
|
2 |
Paper thickness |
105~210g/m2 |
105~210g/m2 |
|
3 |
Cardboard thickness(T) |
1-3mm |
1-3mm |
|
4 |
Precision |
±0.2mm |
±0.5mm |
|
5 |
Production speed |
≦30sheets/min |
≦25sheets/min |
|
6 |
Total Power |
14kw, 380V/50Hz 3P |
14.5kw, 380V/50Hz 3P |
|
7 |
Air supply |
0.6MPa, 0.4m³/min |
0.6MPa, 0.4m³/min |
|
8 |
Machine weight |
2500kg |
3000kg |
|
9 |
Machine dimension(L×W×H) |
7500x2600x1500mm |
7800x3000x1500mm |
Production Flow
 |
