√ New Paper Feeder
√ Irregular Case Folding Technology
√ High-precision Positioning Device
|
|
Model |
BFM1000F |
|
1 |

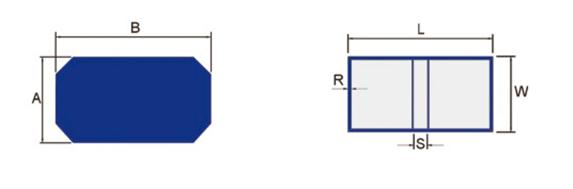

Case size(W×L) |
MIN: 140×240mm,MAX: 600×1050mm |
|
2 |
Paper thickness |
105~210g/㎡ |
|
3 |
Cardboard thickness(T) |
1~4mm |
|
4 |
Min. spine size (S) |
8mm |
|
5 |
Side spine size(s) |
18mm |
|
6 |
Folded paper size(R) |
10~18mm |
|
7 |
Cardboard Qty. |
1-6pieces |
|
8 |
Precision |
±0.2mm |
|
9 |
Production speed |
≦35sheets/min |
|
10 |
Total Power |
25kw/380v 3phase |
|
11 |
Air supply |
0.6MPa, 0.6m³/min |
|
11 |
Machine weight |
6000kg |
|
12 |
Machine dimension (L×W×H) |
L10100×W3000×H2000mm |
