√ Knife distance guide
√ Cast iron body
√ Widened knife seat
√ Automatic waste removal
|
Model |
KL1300B |
|
Cardboard width |
600≤W≤1400mm, L≤1400mm W1=150-1380mm, W2≥85mm |
|
Cutting size |
Min. 150x85mm, Max. 480x1380mm |
|
Cardboard thickness |
1-4mm |
|
Mechanical speed |
30-120m/min |
|
Motor power |
4kw/380V 3phase 50Hz |
|
Machine weight |
2000kg |
|
Machine dimension |
L3600×W2200×H1600mm |

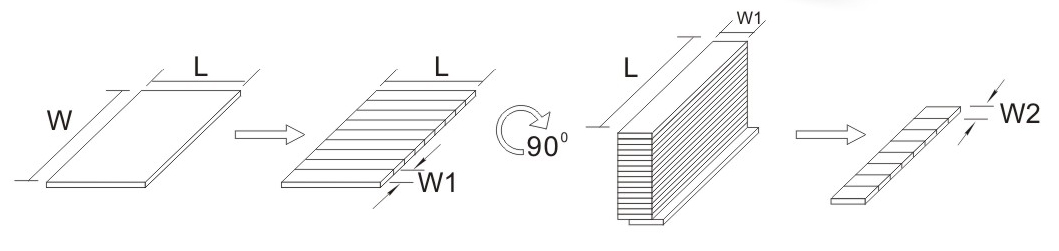

Production Flow:
