1 |

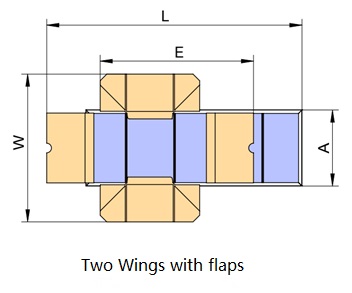

Case size(L*W) |
Max. 1000x690, Min. 100*200mm |
|
2 |
Case Width(A) |
90-450mm |
|
3 |
Wing size(B) |
100-650mm |
|
4 |
Wing size(C) |
30-120mm |
|
5 |
Wing size(D) |
Min.60mm |
|
6 |
Wing and flap relationship(E) |
300-650mm |
|
7 |
Accuracy |
+/-0.1mm |
|
8 |
Speed |
10-15pcs/min |
|
9 |
Power |
220V 1P 50Hz/6KW |
|
10 |
Air supply |
0.6Mpa |
|
11 |
Machine weight |
1200kg |
|
12 |
Machine dimension(L×W×H) |
L6200×W3200×H2000mm |

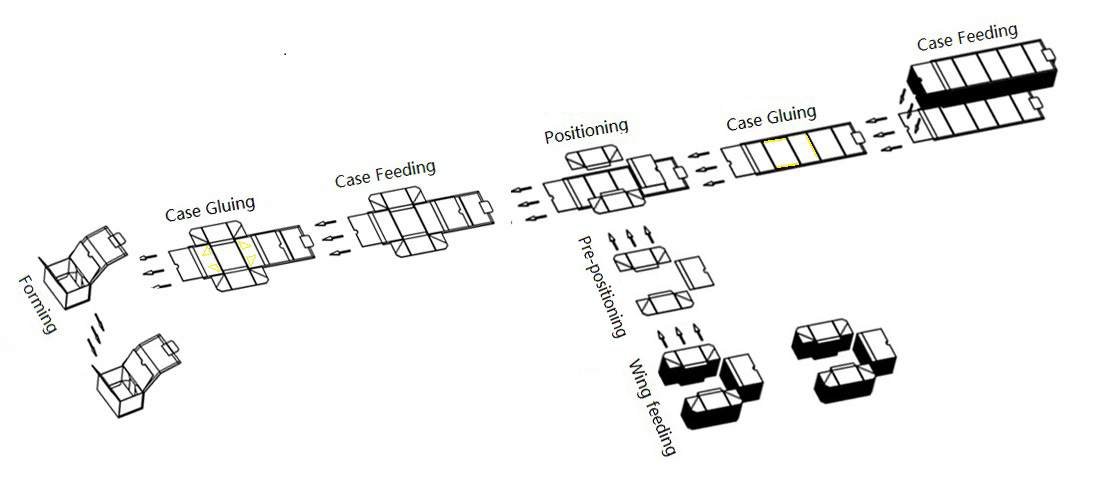

Production flow:
