√ Camera Positioning System
√ Quick Digital Adjustment
√ 51 sets of servo motors
√ Double Station Wrapping
Main Technical Parameters:

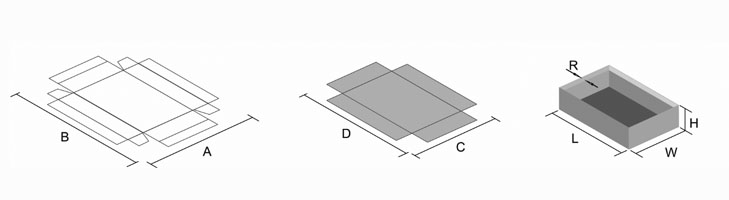

The corresponding relationship between the parameters:
W+2H-4T≤C(Max) L+2H-4T≤D(Max)
A(Min)≤W+2H+2T+2R≤A(Max) B(Min)≤L+2H+2T+2R≤B(Max)
|
|
Model |
RB350 |
|
1 |
Paper size(A×B) |
Min.70*130mm, Max. 460*600mm |
|
2 |
Box size(W×L) |
Min. 30*50mm, Max.250*350mm |
|
3 |
Box height(H) |
10-100mm |
|
4 |
Fold-in paper size(R) |
10-90mm |
|
5 |
Paper thickness |
100-300g/m2 |
|
6 |
Cardboard thickness(T) |
0.8-3mm |
|
7 |
Paper stacking height |
630mm |
|
8 |
Cardboard stacking height |
1100mm |
|
9 |
Precision |
±0.10mm |
|
10 |
Speed |
＜55sheets/min |
|
11 |
Motor power |
30kw/380v 3phase |
|
12 |
Heater power |
10kw |
|
13 |
Air supply |
50L/min 0.6Mpa |
|
14 |
Machine weight |
6000kg |
|
15 |
Machine dimension(L×W×H) |
L6300×W5200×H3200mm |

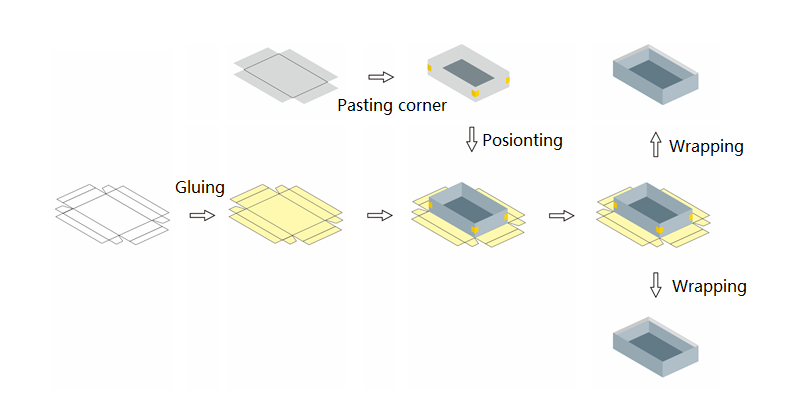

Production Flow:
