√ Small format
√ Camera Robot Positioning system
√ Special edge wrapping(700E)
|
|
Model |
BFM500E |
BFM700E |
|
1 |
Case size(W×L) |
MIN: 60×120mm MAX: 350×500mm |
MIN: 90×180mm MAX: 450×720mm |
|
2 |
Paper thickness |
105~210g/m2 |
105~210g/m2 |
|
3 |
Cardboard thickness(T) |
1~4mm |
1~4mm |
|
4 |
Min. spine size (S) |
8mm |
8mm |
|
5 |
Side spine size(s) |
25mm |
18mm |
|
6 |
Folded paper size(R) |
10~18mm |
10~18mm |
|
7 |
Cardboard Qty. |
1-6pieces |
1-6pieces |
|
8 |
Precision |
±0.1mm |
±0.15mm |
|
9 |
Production speed |
≦40sheets/min |
≦40sheets/min |
|
10 |
Total Power |
19kw/380v 3phase |
20kw/380v 3phase |
|
11 |
Air supply |
0.6m3/min, 0.6MPa |
0.6MPa, 0.6m3/min |
|
11 |
Machine weight |
3500kg |
5000kg |
|
12 |
Machine dimension (L×W×H) |
L5500×W2500×H1800mm |
L8800×W3000×H1800mm |

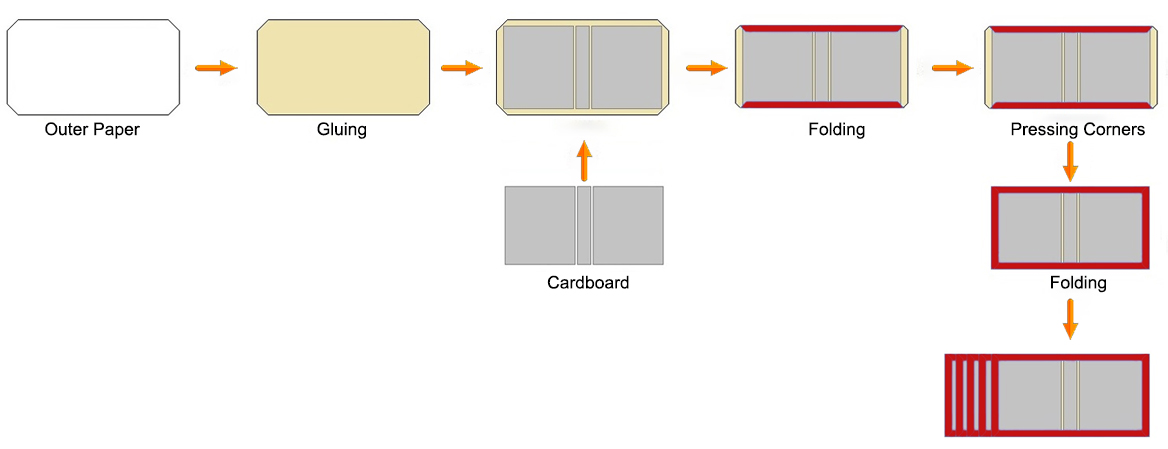

Production flow
