√ Automatic vertical and horizontal cutting
√ Automatic palletizing of finished products
√ Automatic waste removal
|
Model |
KL1300BSD |
|
Stacking height(H) |
≤1300mm |
|
Cardboard width |
W=750-1220mm, L=750-1220mm W1=150-450mm, W2=85-1180mm |
|
Cardboard thickness |
1-4mm |
|
Feeding speed |
≤30sheets/min |
|
Precision |
+/-0.1mm |
|
Motor power |
11kw/380v 3phase |
|
Air supply |
0.6Mpa |
|
Machine weight |
5500kg |
|
Machine dimension |
L11000×W6700×H1930mm |

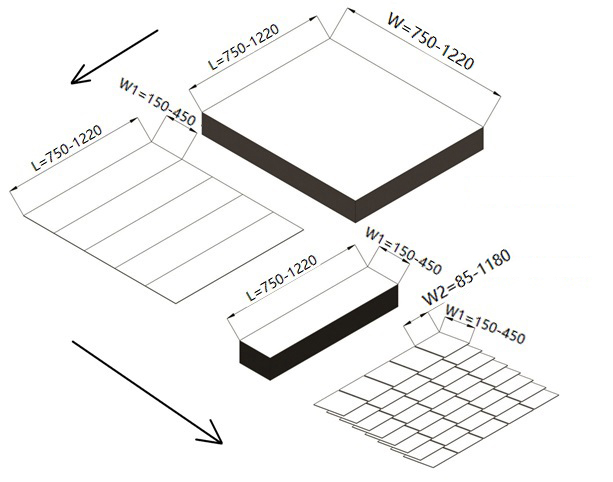

Production flow:
