√ Three points position correction system
√ No scratches
√ Quick setting
√ Available to make irregular shape cases and round corner cases.
|
|
Model |
CM500 |
|
1 |
Case size(A×B) |
MIN: 90×190mm MAX: 500×1000mm |
|
2 |
Paper size(A×B) |
MIN: 90×190mm MAX: 530×1030mm |
|
3 |
Paper thickness |
105~210g/m2 |
|
4 |
Cardboard thickness(T) |
1~8mm |
|
5 |
Min. spine size (S) |
10mm |
|
6 |
Side spine size(s) |
25mm |
|
7 |
Folded paper size(R) |
10~18mm |
|
8 |
Max. quantity of cardboard |
6pieces |
|
9 |
Precision |
±0.25mm |
|
10 |
Production speed |
≦30sheets/min |
|
11 |
Heating power |
8KW |
|
12 |
Motor Power |
10KW, 380V/3P 50Hz |
|
13 |
Machine weight |
3200kg |
|
14 |
Machine dimension (L×W×H) |
L6850×W3100×H1800mm |

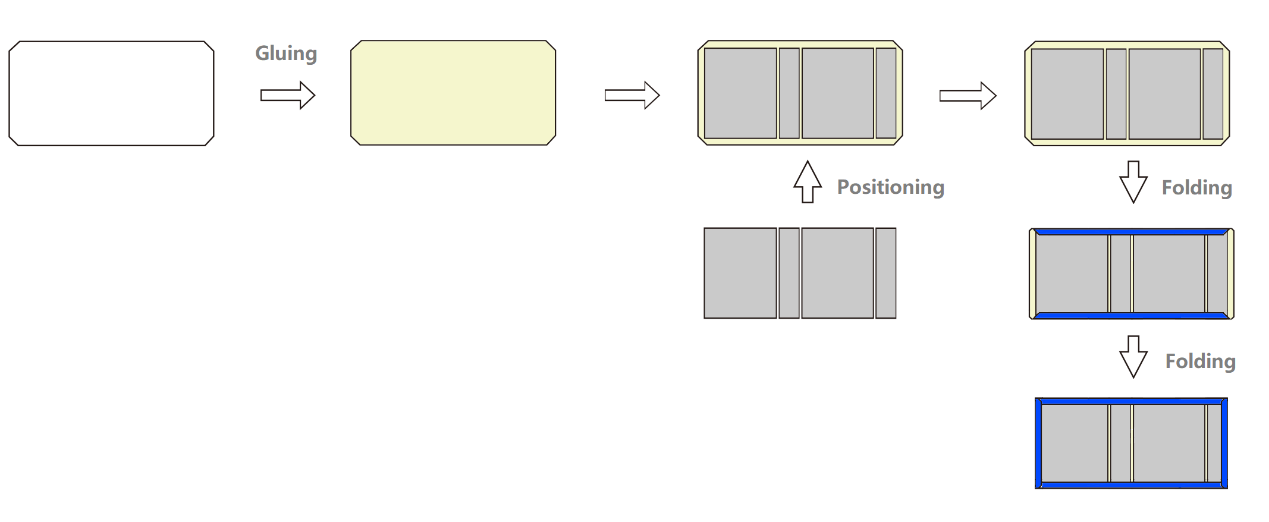

Production flow

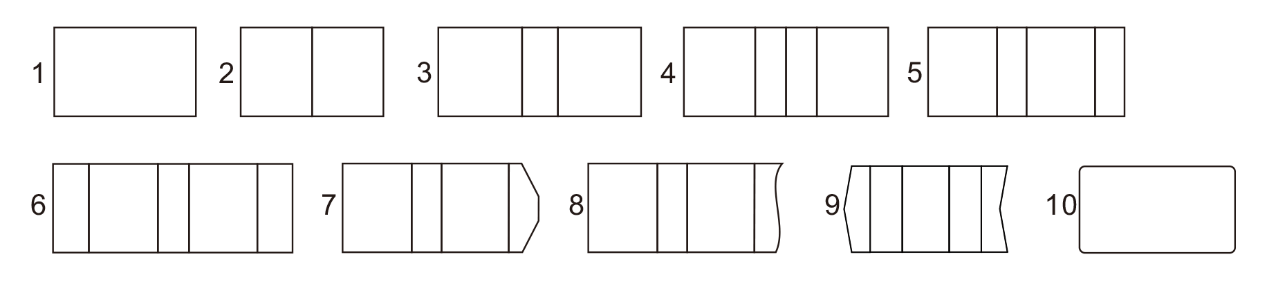

Product samples
