√Robot and camera positioning system
√Two functions in one for making rigid box and case
|
|
Model |
CB500 |
|
1 |
Paper size(A×B) |
MIN: 70×130mm MAX: 620×1040mm |
|
2 |
Case size |
Min. 70×130mm Max. 540×800mm |
|
3 |
Box size |
Min. 50×100mm Max. 400×500mm |
|
4 |
Box Height |
12-150mm |
|
5 |
Paper thickness |
100~300g/m2 |
|
6 |
Paper stacking height |
540mm |
|
7 |
Cardboard thickness(T) |
0.8~3mm |
|
8 |
Board Qty. |
Max. 5pcs |
|
9 |
Board stacking height |
250mm |
|
10 |
Conveyor belt height |
1000mm |
|
11 |
Precision |
+/-0.2mm |
|
12 |
Production speed |
≦30pcs/min |
|
13 |
Motor power |
7kw/380v 3phase |
|
14 |
Heater Power |
10KW |
|
15 |
Machine Weight |
2000KG |
|
16 |
Machine dimension (L×W×H) |
L7500×W250×H2020mm |
Production flow：

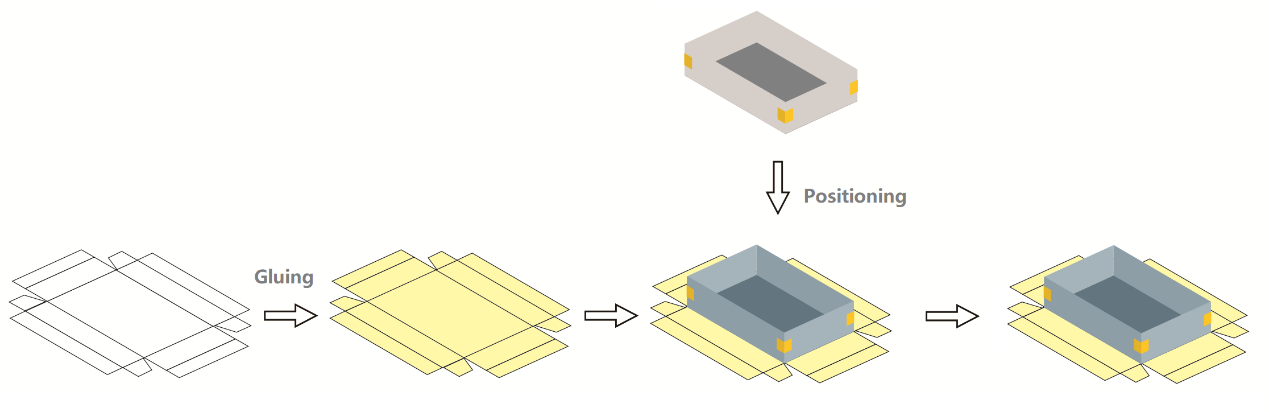

For making box

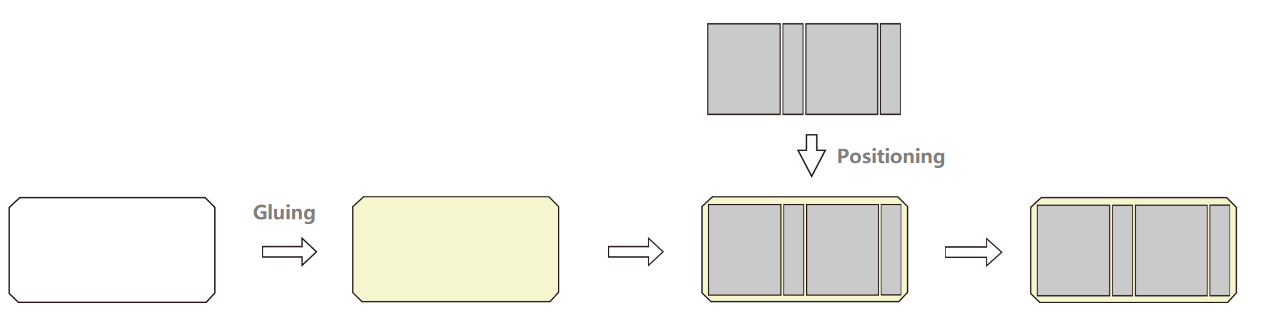

For making case
