Model |
CR350 |
|
Working speed |
20-30pcs/min |
|
Max. hardcover size |
Width 400mm |
|
Min. hardcover size |
Width 110mm |
|
Board thickness |
1-5mm |
|
Corner type |
R6, R8, R10, R12 |
|
Air supply |
10L/min, 0.5Mpa |
|
Power |
0.5KW, 220V/1P 50Hz |
|
Machine Weight |
190KG |
|
Machine dimension |
1000mm*730mm*1435mm |
|
Package dimension |
1100mm*800mm*1600mm |
Product Advantage:
CR350 Corner rounding machine is the equipment for forming the straight hardcover into round corners with different radii as the customer required, which is a good partner for case makers with its easy operation and competitive price.
Features:
1. Able to produce square & round corner cardboard.
2. Adopt with heating device which temperature adjustable.
3. Applicable for craft paper, art paper, cloth etc.
Production Flow:

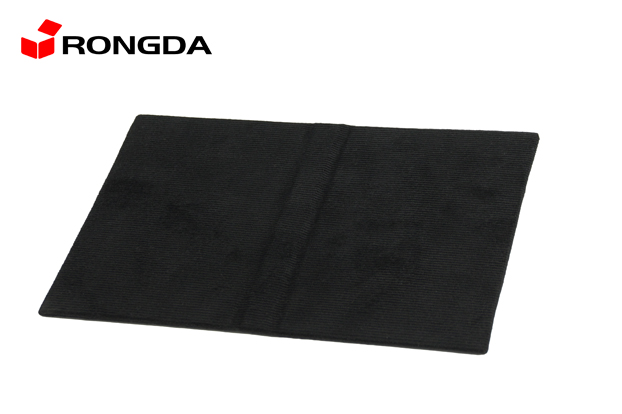

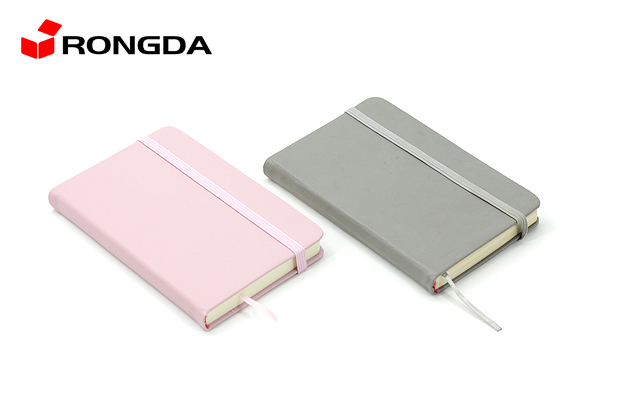

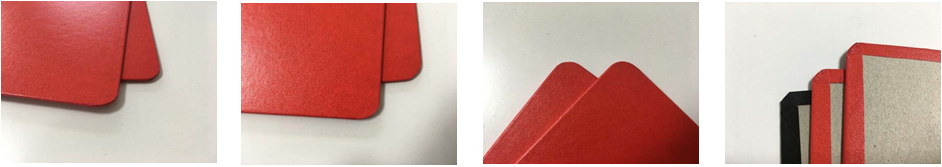

Samples:
