1 |

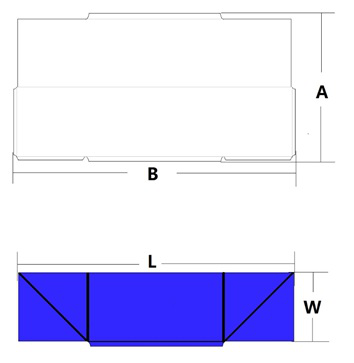

Board size(W×L) |
W: 55-180mm L: 200-700mm |
|
2 |
Paper size(A×B) |
MIN: 110*180mm MAX: 360×700mm |
|
3 |
Paper thickness |
100~200g/m2 |
|
4 |
Middle board thickness(T) |
1~3mm |
|
5 |
Side board thickness |
0.5-2mm |
|
6 |
Precision |
±0.25mm |
|
7 |
Production speed |
≦30sheets/min |
|
8 |
Power |
20kw/380v 3phase |
|
9 |
Machine weight |
3500kg |
|
10 |
Machine dimension (L×W×H) |
L7400×W2500×H1500mm |
Production flow:
