Main Technical Parameters:
|
|
Model |
800D |
D1200D |
|
1 |
Box Length |
L100-450mm, degree: 5-40° |
L100-450mm, degree: 5-40° |
|
2 |
Box Width |
W100-600mm |
W100-400mm |
|
3 |
Box Height |
H15-200mm |
H15-200mm |
|
4 |
Material |
200-600g/㎡ white cardboard/cartulina blanca; PE coated paper/Papel estucado de PE; corrugated paper/papel corrugado; thickness/ espesor 1.5mm |
|
|
5 |
Speed |
50-180pcs/min |
80-320pcs/min |
|
6 |
Power |
5KW, 380V 50HZ |
6.25KW, 380V 50HZ |
|
7 |
Machine dimension |
3600x1400x1700mm |
3600x1850x1700mm |
|
8 |
Weight |
1800kg |
2800kg |
|

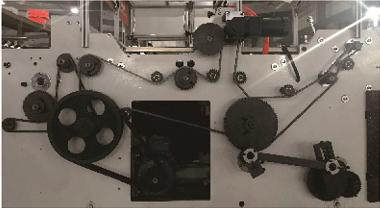

Gear chain transmission |

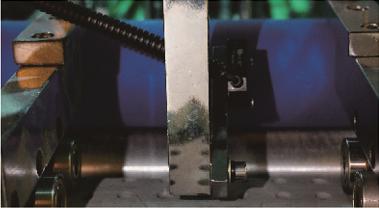

Paper feeding photoelectric detection |
|

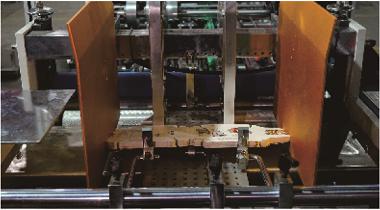

Vacuum suction servo feeding |

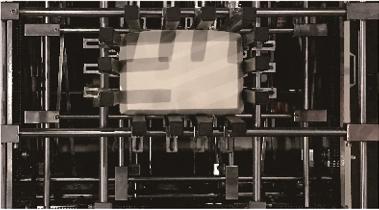

Automatic collection |
