主要技术参数:
|
|
型号 |
800D |
D1200D |
|
1 |
纸盒长 |
L100-450mm, degree: 5-40° |
L100-450mm, degree: 5-40° |
|
2 |
纸盒宽 |
W100-600mm |
W100-400mm |
|
3 |
纸盒高 |
H15-200mm |
H15-200mm |
|
4 |
原材料 |
200-600g/㎡ white cardboard/cartulina blanca; PE coated paper/Papel estucado de PE; corrugated paper/papel corrugado; thickness/ espesor 1.5mm |
|
|
5 |
生产速度 |
50-180pcs/min |
80-320pcs/min |
|
6 |
功率 |
5KW, 380V 50HZ |
6.25KW, 380V 50HZ |
|
7 |
整机尺寸 |
3600x1400x1700mm |
3600x1850x1700mm |
|
8 |
机器重量 |
1800kg |
2800kg |
|

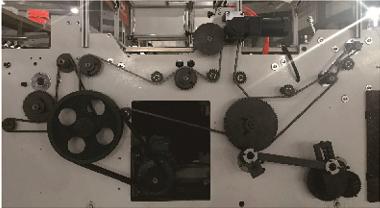

齿轮链条传动 |

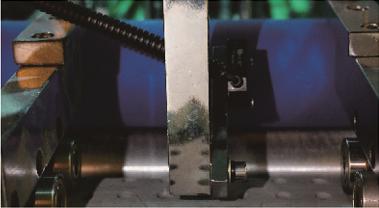

送纸光电检测 |
|

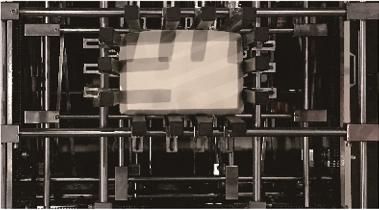

真空吸伺服送纸 |

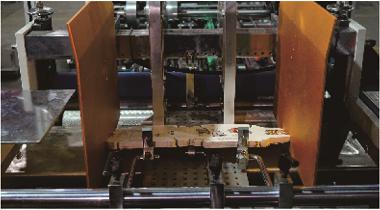

自动成型收集 |
